Badges

• State
  • Using x-state
    • Custom color
  • Using OpenAPI 3.2 tags
• Beta
  • Example usage

State #

Add badges to your operations and properties for a quick visual indication of their status, such as “Technical Preview” or “Soon deprecated”.

Badges can be declared in two ways: with the x-state custom property, or, from OpenAPI 3.2 onwards, with tags.

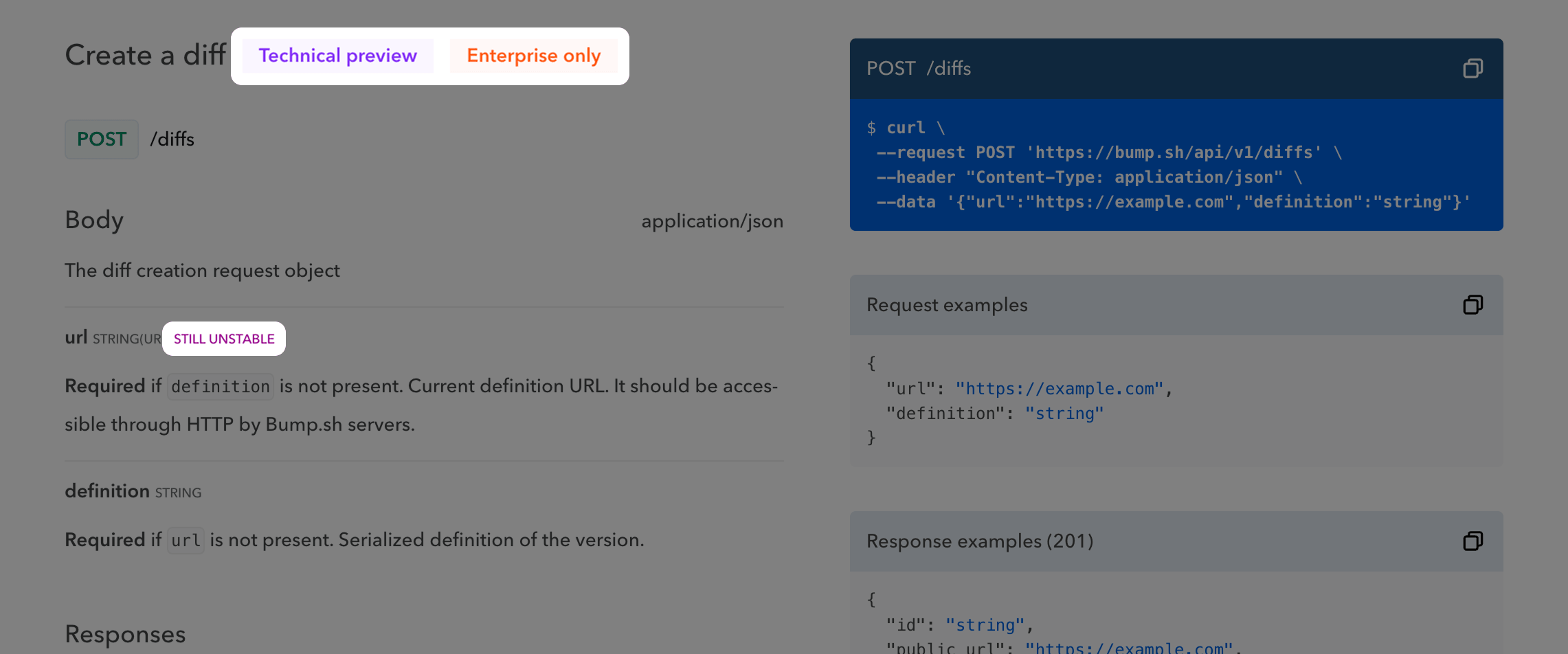

Using x-state #

x-state is a custom property added on an operation or a property. Set it to a string to display a badge carrying that text, or to an object to choose its color as well. An array of objects displays several badges on the same element.

paths:
  /diffs:
    post:
      summary: Create a diff
      x-state: # x-state flags at the operation level, displayed as two badges
        - label: Technical preview
          color: "#7C3AED"
        - label: Enterprise only
          color: "#FF6B35"
      requestBody:
        description: The diff creation request object
        content:
          application/json:
            schema:
              type: object
              properties:
                url:
                  type: string
                  format: uri
                  x-state: Still unstable # x-state flag at the property level
                  description: |
                    **Required** if `definition` is not present.
                    Current definition URL. It should be accessible through HTTP by Bump.sh servers.

Adding or removing an x-state is never a breaking change in the changelog, as it does not affect the structure of the API. It does not shield the component it is attached to either: if that component changes structurally, the changelog still reports a potential breaking change — unless the component also carries x-beta, which takes precedence and suppresses it.

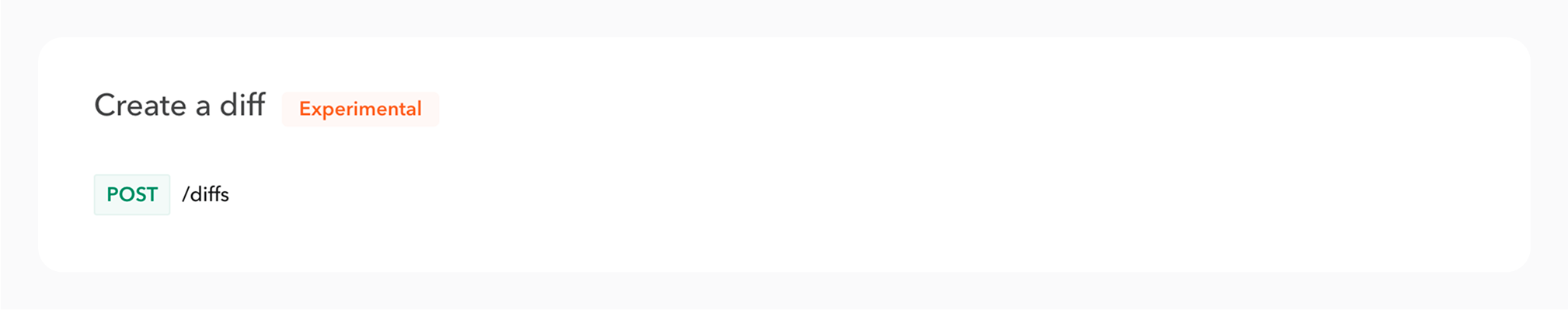

Custom color #

The default color can be overridden with the two properties of the x-state object:

• label: the text displayed on the badge,
• color: the color of that text. The background is generated from it, to ensure readability.

x-state:
  label: "Experimental"
  color: "#FF6B35"

Using OpenAPI 3.2 tags #

With OpenAPI 3.2, a tag declared with kind: badge is not used to group operations: every operation carrying it displays it as a badge, in the default color.

tags:
  - name: diffs
    summary: Diffs
    kind: nav
  - name: Technical preview # displayed as a badge, not as a navigation group
    kind: badge
  - name: Enterprise only
    kind: badge

paths:
  /diffs:
    post:
      summary: Create a diff
      tags: ["diffs", "Technical preview", "Enterprise only"]
      ...

The badge text is the tag name, and not its summary, so write it exactly as you want it to be read: spaces are allowed. A tag that is not declared at the root of your document with kind: badge displays nothing, badge tags never appear in the navigation, and webhooks are supported just like operations.

In OpenAPI, tags apply to operations and webhooks: use x-state when you need a badge on a property, or when you need a custom color.

Beta #

Use the boolean x-beta property inside an operation, a schema or a parameter object to identify it as beta. A change in a beta component is never identified as a breaking change.

Example usage #

paths:
  /diffs:
    post:
      description: Create a diff between any two given API definitions
      x-beta: true # Beta flag at the operation level
      requestBody:
        description: The diff creation request object
        content:
          application/json:
            schema:
              type: object
              x-beta: true # Beta flag at the top-level schema object
              properties:
                url:
                  type: string
                  format: uri
                  x-beta: true # Beta flag at the schema level
                  description: |
                    **Required** if `definition` is not present.
                    Current definition URL. It should be accessible through HTTP by Bump.sh servers.

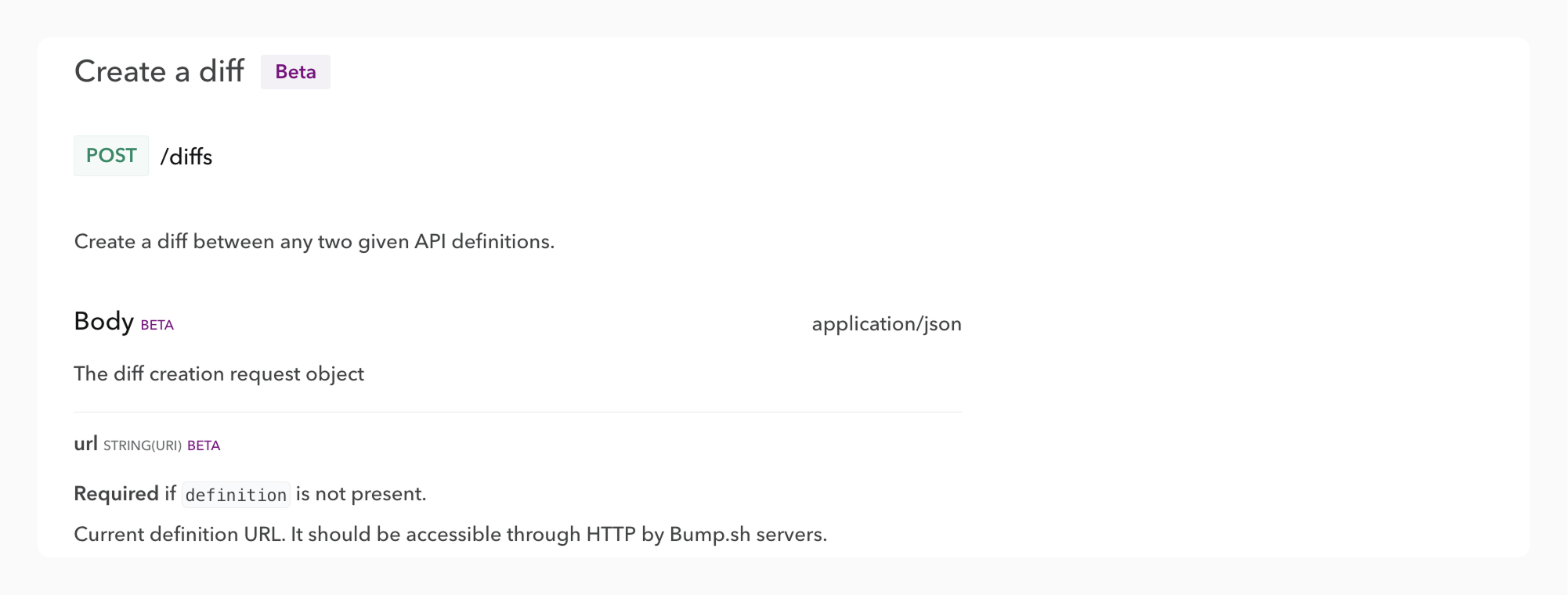

The documentation displays a “Beta” flag on the components:
